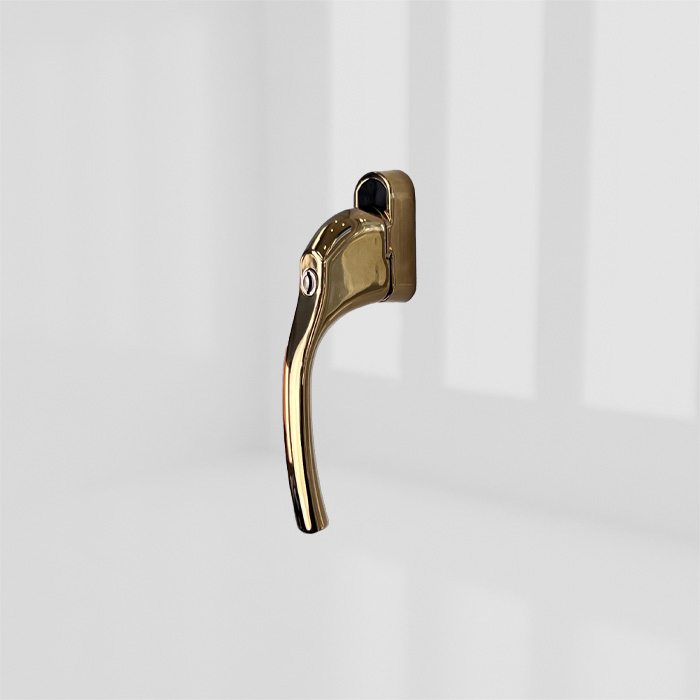

ALPHA 40SP LKG TBT HANDLE PVD GOLDALPHA 40SP LKG TBT HANDLE PVD GOLD

The Alpha TBT handle is a premium quality handle that features the modern appearance and comfortable feel of its Alpha stable mates.
Alpha TBT is available in locking and non-locking versions.

The lockable handle has four settings:

• 1) Unlocked - the handle will permit free movement from closed, through to tilt and into the turn position to allow the external face of the window to be safely cleaned from inside the building.
• 2) Tilt Safe - with the cylinder turned to 90° the handle permits free movement to the 90° tilt position to allow tilt ventilation, but the window cannot be fully opened, thus preventing falls. Once the handle is unlocked using the key the window can be opened in turn mode.
• 3) Locked - with the cylinder in the locked position (180° from unlocked) the handle is fully locked, and the window cannot be opened in any position. For security reasons, this is the ideal state for the handle to be left in when the building is empty as it will also block the movement of the hardware if manual manipulation is attempted from outside.
• 4) Turn First Locked - by fitting the backplate inverted, the handle can be locked in the bottom (closed) position as normal, but the user will not have the option of turning the key to only 90°. It must be turned the full 180° to allow the handle to operate, making it suitable for remedial fitting to older turn first windows.

The handle backplate is marked TS and TF under the cover plate to indicate if the handle is being fitted in Tilt Safe or Turn First mode.
The non-locking handle is true non-locking as it features no push buttons or latching mechanism, providing ease of use where locking and/or latching is unnecessary.
Standard 43mm fixing centres make Alpha TBT suitable for all Eurogroove - fit tilt and turn hardware systems widely used on PVCu, timber and aluminum windows.
Alpha TBT is available with a 40mm spindle as standard.
Alpha TBT is available in 8 finishes of the greenteQ Suite and is covered by the greenteQ 20-year surface guarantee.

Key Features at a Glance

• TBT, Turn first and Non-Locking functions
• Four settings
• Available in 8 colours of the greenteQ Suite
• Covered by the 10-year greenteQ mechanical guarantee
• Covered by the 20-year greenteQ surface guarantee
• Secured by Design Police Preferred Specification
