EPSILON INLINE ESPAG 16F/22mm/7.7mm 1000mmEPSILON INLINE ESPAG 16F/22mm/7.7mm 1000mm

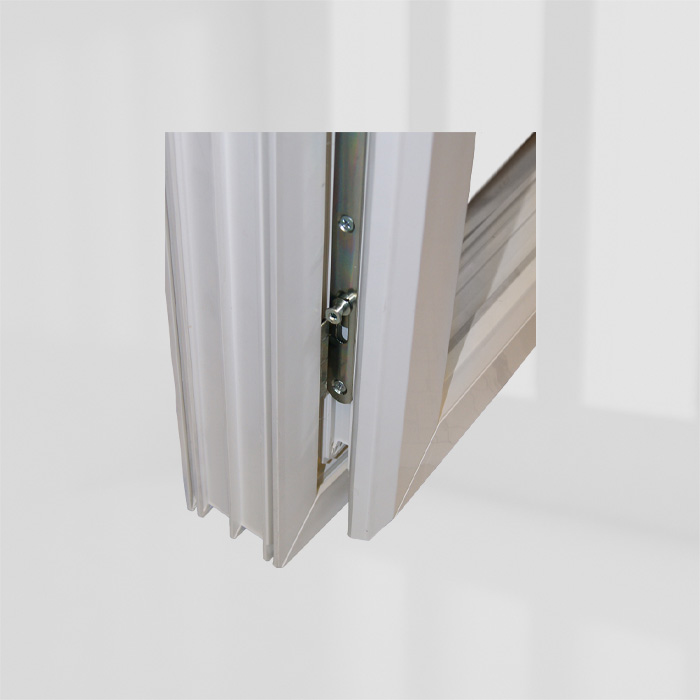

The greenteQ Epsilon outward opening window espagnolette is ideal for those fabricators who require a simple, yet highly effective, locking mechanism without compromising on quality.
As with all greenteQ products, the espagnolette is manufactured to a very high standard.
Epsilon is silver passivated to 20-25 microns, achieving 240 hours neutral salt spray test results, and has a flat 16mm faceplate with radiused ends.
The inline gearbox resists a minimum 40Nm torque loading and is available in the industry-standard 20 and 22mm backsets that are required on most casement window sections.
A 7mm spindle drive, coupled with 43mm fixing screw centres mean that the espagnolette can be used with standard espag handles, including the popular greenteQ Alpha.
Locking is achieved through up to 4 adjustable mushroom cams that come in a choice of 7.7 or 9mm heights. These mushroom bolts locate into 2-stage striker plates to provide ‘closed’ or ‘night vent’ positions.
Epsilon is available in 250, 400, 600, 800, 1000 and 1200mm lengths.
Covered by the greenteQ 10-year mechanical guarantee.

Key Features at a Glance

• Industry standard backsets and mushroom bolts
• Base-level multipoint locking
• 240 Hours neutral salt spray testing (very high resistance)
• Covered by the 10-year greenteQ mechanical guarantee
